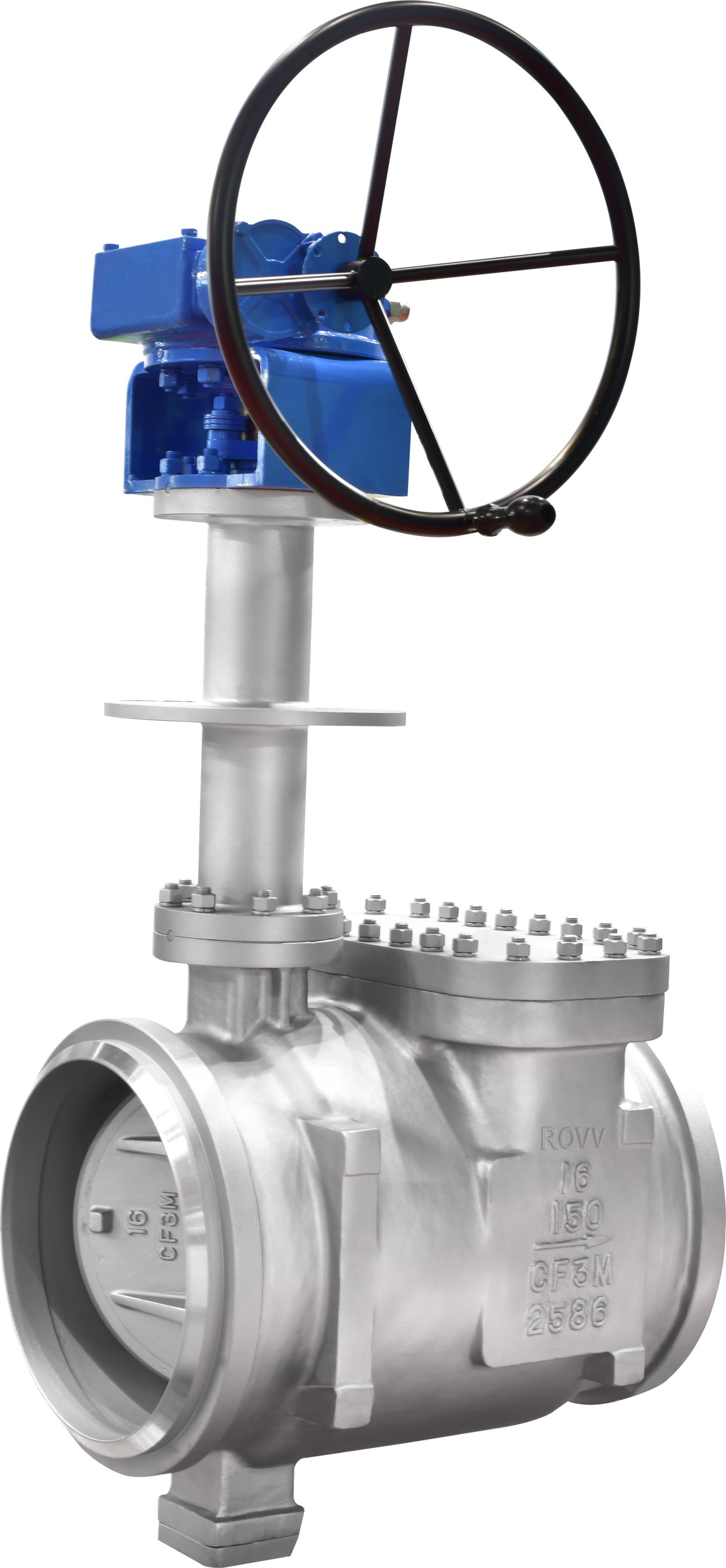

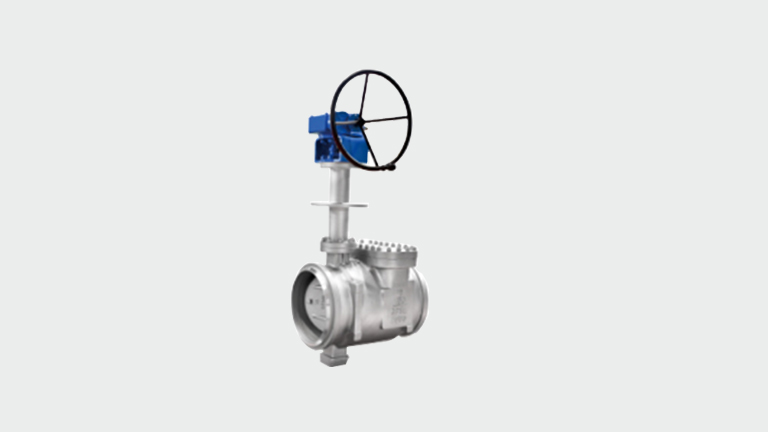

Low temperature Butterfly Valve

FEATURES

• Simple structure: The low-temperature butterfly valve consists of a valve body, valve seat, valve stem, valve disc, etc. It has a simple structure, is easy to maintain and replace, and reduces production and usage costs.
• Small size: The low-temperature butterfly valve adopts an elastic sealing structure, which occupies a small space and is convenient for installation and maintenance.
• Lightweight: Low temperature butterfly valves have a small volume and light weight, which can reduce the quality of pipeline systems and lower construction costs.
• Good sealing performance: The low-temperature butterfly valve adopts an elastic sealing structure, which can effectively prevent medium leakage and ensure the safe operation of the system.
• Corrosion resistance: The valve body and disc materials are generally made of stainless steel, carbon steel, titanium alloy, etc. which can resist the corrosion of corrosive media such as sulfides and saltwater.

PARAMETER

• DESIGN & MANUFACTURE：API609、JB/T8527、GB/T24925
• CONECTION END STD：ASME B16.5、GOST 33259、GB/T9124、HG/T20592
• TEST & INSPECT：API 598、ISO5208、GB/T13927
• NOMINAL DIAMETER：DN100~DN1200 NPS 4~NPS 48
• RATING：PN16/PN25/PN40/PN64/PN100；150LB/300LB/600LB；10K/20K/30K/45K
• BODY MATERIAL：CF8、CF8M、CF3M
• DISC MATERIAL：CF8、CF8M、CF3M
• SHAFT MATERIAL：F304、F316、F316L
• SEAT MATERIAL：F304+N、F316+N、F316L+N
• PACKING：FLEXIBLE GRAPHITE、PTFE
• APPLICABLE MEDIA：LNG、LIQUID NITROGEN,ETC.
• SUITABLE TEMPERATURE：-196~300℃
• LEAKAGE CLASS：CLASS V、CLASS VI
• CONECTION END： FLANGE、WAFER、FLUG、WELDING
• ACTUATOR： MANUAL、GEAR、ELECTRIC、PNEUMATIC

PRODUCT STRUCTURE FEATURES

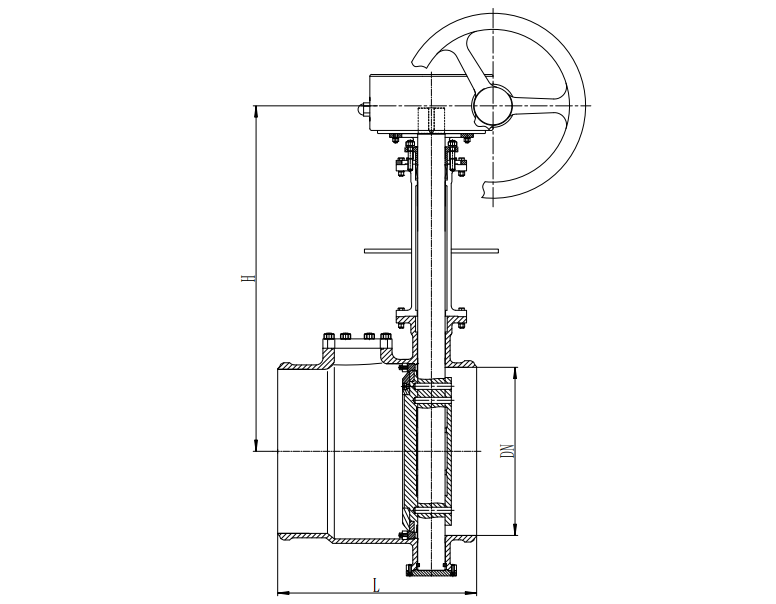

Main Dimension &Weight(Cryogenic Side Entry)150LB

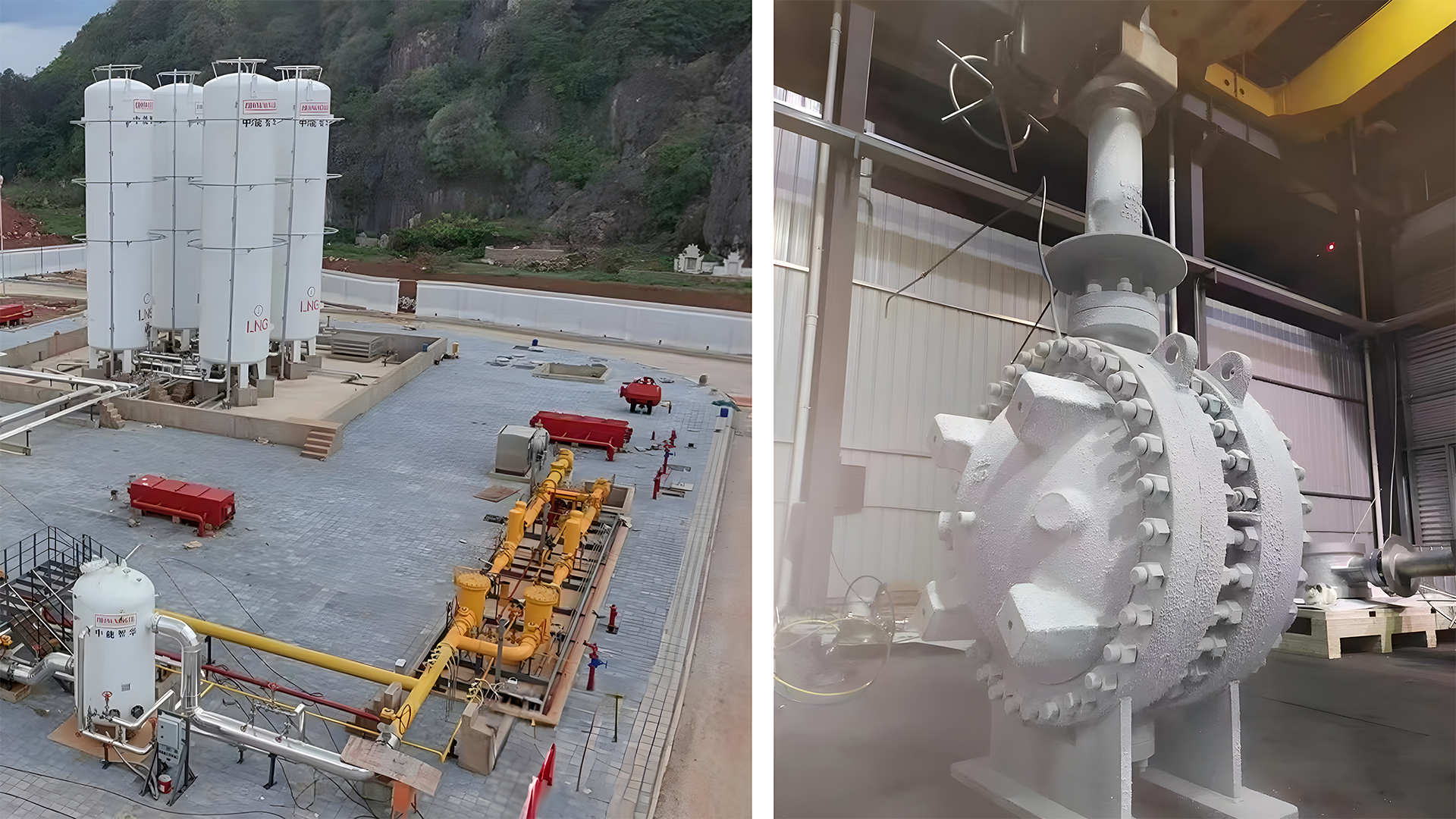

APPLICATION

Liquefied natural gas, liquefied petroleum gas, etc
